The settings element in the settings.xml file contains elements used to define values which configure Maven execution. Settings in this file are settings which apply to many projects and which should not be bundled to any specific project, or distributed to an audience. These include values such as the local repository location, alternate remote repository servers, and authentication information. There are two locations where a settings.xml file may live:
- Maven Installation Directory: $M2_HOME/conf/settings.xml
- User-specific Settings File: ~/.m2/settings.xml
Here is an overview of the top elements under settings:
Overview of top-level elements in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> <localRepository/> <interactiveMode/> <usePluginRegistry/> <offline/> <pluginGroups/> <servers/> <mirrors/> <proxies/> <profiles/> <activeProfiles/> </settings>
15.2. Settings Details
- 15.2.1. Simple Values
- 15.2.2. Servers
- 15.2.3. Mirrors
- 15.2.4. Proxies
- 15.2.5. Profiles
- 15.2.6. Activation
- 15.2.7. Properties
- 15.2.8. Repositories
- 15.2.9. Plugin Repositories
- 15.2.10. Active Profiles
- 15.2.11. Encrypting Passwords in Maven Settings
Half of the top-level settings elements are simple values, representing a range of values which configure the core behavior of Maven:
Simple top-level elements in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> <localRepository>${user.dir}/.m2/repository</localRepository> <interactiveMode>true</interactiveMode> <usePluginRegistry>false</usePluginRegistry> <offline>false</offline> <pluginGroups> <pluginGroup>org.codehaus.mojo</pluginGroup> </pluginGroups> ... </settings>
The simple top-level elements are:
localRepository
This value is the path of this build system’s local repository. The default value is ${user.dir}/.m2/repository.
interactiveMode
true
if Maven should attempt to interact with the user for input, false
if not. Defaults to true
.
usePluginRegistry
true
if Maven should use the ${user.dir}/.m2/plugin-registry.xml file to manage plugin versions, defaults to false
.
offline
true
if this build system should operate in offline mode, defaults to false
. This element is useful for build servers which cannot connect to a remote repository, either because of network setup or security reasons.
pluginGroups
This element contains a list of pluginGroup
elements, each contains a groupId
. The list is searched when a plugin is used and the groupId
is not provided in the command line. This list contains org.apache.maven.plugins
by default.
The distributionManagement
element of the POM defines the repositories for deployment. However, certain settings such as security credentials should not be distributed along with the pom.xml. This type of information should exist on the build server in the settings.xml.
Server configuration in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> ... <servers> <server> <id>server001</id> <username>my_login</username> <password>my_password</password> <privateKey>${user.home}/.ssh/id_dsa</privateKey> <passphrase>some_passphrase</passphrase> <filePermissions>664</filePermissions> <directoryPermissions>775</directoryPermissions> <configuration></configuration> </server> </servers> ... </settings>
The elements under server are:
id
This is the id
of the server (not of the user to login as) that matches the distributionManagement
repository element’s id
.
username, password
These elements appear as a pair denoting the login and password required to authenticate to this server.
privateKey, passphrase
Like the previous two elements, this pair specifies a path to a private key (default is ${user.home}/.ssh/id_dsa) and a passphrase, if required. The passphrase and password elements may be externalized in the future, but for now they must be set plain-text in the settings.xml file.
filePermissions, directoryPermissions
When a repository file or directory is created on deployment, these are the permissions to use. The legal values of each is a three digit number corresponding to *nix file permissions, i.e. 664, or 775.
Mirror configuration in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> ... <mirrors> <mirror> <id>planetmirror.com</id> <name>PlanetMirror Australia</name> <url>http://downloads.planetmirror.com/pub/maven2</url> <mirrorOf>central</mirrorOf> </mirror> </mirrors> ... </settings>
id, name
The unique identifier of this mirror. The id is used to differentiate between mirror elements.
url
The base URL of this mirror. The build system will use prepend this URL to connect to a repository rather than the default server URL.
mirrorOf
The id of the server that this is a mirror of. For example, to point to a mirror of the Maven central server (https://repo1.maven.org/maven2), set this element to central. This must not match the mirror id.
Proxy configuration in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> ... <proxies> <proxy> <id>myproxy</id> <active>true</active> <protocol>http</protocol> <host>proxy.somewhere.com</host> <port>8080</port> <username>proxyuser</username> <password>somepassword</password> <nonProxyHosts>*.google.com|ibiblio.org</nonProxyHosts> </proxy> </proxies> ... </settings>
id
The unique identifier for this proxy. This is used to differentiate between proxy elements.
active
true
if this proxy is active. This is useful for declaring a set of proxies, but only one may be active at a time.
protocol, host, port
The protocol://host:port
of the proxy, separated into discrete elements.
username, password
These elements appear as a pair denoting the login and password required to authenticate to this proxy server.
nonProxyHosts
This is a list of hosts which should not be proxied. The delimiter of the list is the expected type of the proxy server; the example above is pipe delimited - comma delimited is also common.
The profile
element in the settings.xml is a truncated version of the pom.xml profile element. It consists of the activation
, repositories
, pluginRepositories
and properties
elements. The profile elements only include these four elements because they concern themselves with the build system as a whole (which is the role of the settings.xml file), not about individual project object model settings.
If a profile is active from settings, its values will override any equivalent profiles which matching identifiers in a POM or profiles.xml file.
Activations are the key of a profile. Like the POM’s profiles, the power of a profile comes from its ability to modify some values only under certain circumstances; those circumstances are specified via an activation element.
Defining Activation Parameters in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> ... <profiles> <profile> <id>test</id> <activation> <activeByDefault>false</activeByDefault> <jdk>1.5</jdk> <os> <name>Windows XP</name> <family>Windows</family> <arch>x86</arch> <version>5.1.2600</version> </os> <property> <name>mavenVersion</name> <value>2.0.3</value> </property> <file> <exists>${basedir}/file2.properties</exists> <missing>${basedir}/file1.properties</missing> </file> </activation> ... </profile> </profiles> ... </settings>
Activation occurs when all specified criteria have been met, though not all are required at once.
jdk
activation has a built in, Java-centric check in the jdk element. This will activate if the test is run under a jdk version number that matches the prefix given. In the above example, 1.5.0_06 will match.
os
The os
element can define some operating system specific properties shown above.
property
The profile will activate if Maven detects a property (a value which can be dereferenced within the POM by widget_1673449823169) of the corresponding name=value pair.
file
Finally, a given filename may activate the profile by the existence of a file, or if it is missing.
The activation
element is not the only way that a profile may be activated. The settings.xml file’s activeProfile
element may contain the profile’s id. They may also be activated explicitly through the command line via a comma separated list after the P flag (e.g. -P
test).
To see which profile will activate in a certain build, use the maven-help-plugin.
mvn help:active-profiles
Maven properties are value placeholder, like properties in Ant. Their values are accessible anywhere within a POM by using the notation ${X}, where X is the property. They come in five different styles, all accessible from the settings.xml file:
+env.+X
Prefixing a variable with env.
will return the shell’s environment variable. For example, ${env.PATH} contains the $path environment variable. (%PATH%
in Windows.)
+project.+x
A dot-notated (.) path in the POM will contain the corresponding elements value.
+settings.+x
A dot-notated (.) path in the settings.xml will contain the corresponding elements value.
Java system properties
All properties accessible via java.lang.System.getProperties()
are available as POM properties, such as ${java.home}.
x
Set within a properties
element or an external file, the value may be used as ${someVar}.
Setting the ${user.install} property in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> ... <profiles> <profile> ... <properties> <user.install>${user.dir}/our-project</user.install> </properties> ... </profile> </profiles> ... </settings>
The property ${user.install} is accessible from a POM if this profile is active.
Repositories are remote collections of projects from which Maven uses to populate the local repository of the build system. It is from this local repository that Maven calls it plugins and dependencies. Different remote repositories may contain different projects, and under the active profile they may be searched for a matching release or snapshot artifact.
Repository Configuration in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> ... <profiles> <profile> ... <repositories> <repository> <id>codehausSnapshots</id> <name>Codehaus Snapshots</name> <releases> <enabled>false</enabled> <updatePolicy>always</updatePolicy> <checksumPolicy>warn</checksumPolicy> </releases> <snapshots> <enabled>true</enabled> <updatePolicy>never</updatePolicy> <checksumPolicy>fail</checksumPolicy> </snapshots> <url>http://snapshots.maven.codehaus.org/maven2</url> <layout>default</layout> </repository> </repositories> <pluginRepositories> ... </pluginRepositories> ... </profile> </profiles> ... </settings>
releases, snapshots
These are the policies for each type of artifact, Release or snapshot. With these two sets, a POM has the power to alter the policies for each type independent of the other within a single repository. For example, one may decide to enable only snapshot downloads, possibly for development purposes.
enabled
true
or false
for whether this repository is enabled for the respective type (releases or snapshots).
updatePolicy
This element specifies how often updates should attempt to occur. Maven will compare the local POMs timestamp to the remote. The choices are: always
, daily
(default), interval:X
(where X is an integer in minutes) or never
.
checksumPolicy
When Maven deploys files to the repository, it also deploys corresponding checksum files. Your options are to ignore
, fail
, or warn
on missing or incorrect checksums.
layout
In the above description of repositories, it was mentioned that they all follow a common layout. This is mostly correct. Maven 2 has a default layout for its repositories; however, Maven 1.x had a different layout. Use this element to specify which if it is default or legacy. If you are upgrading from Maven 1 to Maven 2, and you want to use the same repository which was used in your Maven 1 build, list the layout as legacy
.
The structure of the pluginRepositories
element block is similar to the repositories
element. The pluginRepository
elements each specify a remote location of where Maven can find plugins artifacts.
Plugin Repositories in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> ... <profiles> <profile> ... <repositories> ... </repositories> <pluginRepositories> <pluginRepository> <id>codehausSnapshots</id> <name>Codehaus Snapshots</name> <releases> <enabled>false</enabled> <updatePolicy>always</updatePolicy> <checksumPolicy>warn</checksumPolicy> </releases> <snapshots> <enabled>true</enabled> <updatePolicy>never</updatePolicy> <checksumPolicy>fail</checksumPolicy> </snapshots> <url>http://snapshots.maven.codehaus.org/maven2</url> <layout>default</layout> </pluginRepository> </pluginRepositories> ... </profile> </profiles> ... </settings>
Setting active profiles in settings.xml.
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd"> ... <activeProfiles> <activeProfile>env-test</activeProfile> </activeProfiles> </settings>
The final piece of the settings.xml puzzle is the activeProfiles
element. This contains a set of activeProfile
elements, which each have a value of a profile id. Any profile id defined as an activeProfile
will be active, regardless of any environment settings. If no matching profile is found nothing will happen. For example, if env-test
is an activeProfile
, a profile
in a pom.xml (or profile.xml with a corresponding id it will be active. If no such profile is found then execution will continue as normal.
Once you start to use Maven to deploy software to remote repositories and to interact with source control systems directly, you will start to collect a number of passwords in your Maven Settings and without a mechanism for encrypting these passwords, a developer’s ~/.m2/settings.xml will quickly become a security risk as it will contain plain-text passwords to source control and repository managers. Maven 2.1 introduced a facility to encrypt passwords in a user’s Maven Settings (~/.m2/settings.xml). To do this, you must first create a master password and store this master password in a security-settings.xml file in ~/.m2/settings-security.xml. You can then use this master password to encrypt passwords stored in Maven Settings (~/.m2/settings.xml).

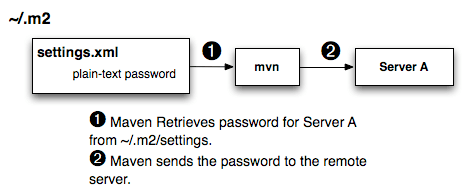

To illustrate this feature, consider the process Maven uses to retrieve an unencrypted server password for a user’s Maven Settings as shown in Figure 15.1, “Storing Unencrypted Passwords in Maven Settings”. A user will reference a named server using an identifier in a project’s POM, Maven looks for a matching server in Maven Settings. When it finds a matching server element in Maven Settings, Maven will then use the password associated with that server element and send this password along to the server. The password is stored as plain-text in ~/.m2/settings.xml and it is readily available to anyone who has read access to this file.

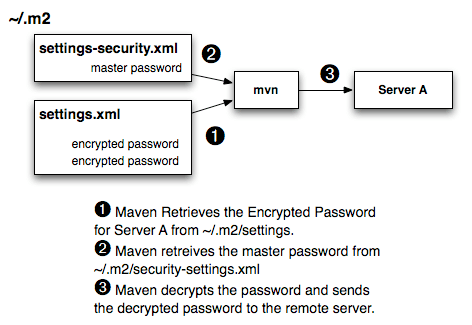

Next, consider the process Maven uses to support encrypted passwords as shown in Figure 15.2, “Storing Encrypted Passwords in Maven Settings”.
To configure encrypted passwords, create a master password by running mvn -emp
or mvn --encrypt-master-password
followed by your master password.
$ mvn -emp mypassword {rsB56BJcqoEHZqEZ0R1VR4TIspmODx1Ln8/PVvsgaGw=}
Maven prints out an encrypted copy of the password to standard out. Copy this encrypted password and paste it into a ~/.m2/settings-security.xml file as shown in
settings-security.xml with Master Password.
<settingsSecurity> <master>{rsB56BJcqoEHZqEZ0R1VR4TIspmODx1Ln8/PVvsgaGw=}</master> </settingsSecurity>
After you have created a master password, you can then encrypt passwords for use in your Maven Settings. To encrypt a password with the master password, run mvn -ep
or mvn --encrypt-password
. Assume that you have a repository manager and you need to send a username of "deployment" and a password of "qualityFIRST". To encrypt this particular password, you would run the following command:
$ mvn -ep qualityFIRST {uMrbEOEf/VQHnc0W2X49Qab75j9LSTwiM3mg2LCrOzI=}
At this point, copy the encrypted password printed from the output of mvn -ep
and paste it into your Maven Settings.
Storing an Encrypted Password in Maven Settings (~/.m2/settings.xml).
<settings> <servers> <server> <id>nexus</id> <username>deployment</username> <password>{uMrbEOEf/VQHnc0W2X49Qab75j9LSTwiM3mg2LCrOzI=}</password> </server> </servers> ... </settings>
When you run a Maven build that needs to interact with the repository manager, Maven will retrieve the Master password from the ~/.m2/settings-security.xml file and use this master password to decrypt the password stored in your ~/.m2/settings.xml file. Maven will then send the decrypted password to the server.
What does this buy you? It allows you to avoid storing your passwords in ~/.m2/settings.xml as plain-text passwords providing you with the peace of mind that your critical passwords are not being stored, unprotected in a Maven Settings file. Note that this feature does not provide for encryption of the password while it is being sent to the remote server. An enterprising attacker could still capture the password using a network analysis tool.
For an extra level of security, you can encourage your developers to store the encrypted master password on a removable storage device like a USB hard drive. Using this method, a developer would plug a removable drive into a workstation when she wanted to perform a deployment or interact with a remote server. To support this, your ~/.m2/settings-security.xml file would contain a reference to the location of the settings-security.xml file using the relocation element.
Configuring Relocation of the Master Password.
<settingsSecurity> <relocation>/Volumes/usb-key/settings-security.xml</relocation> </settingsSecurity>
The developer would then store the settings-security.xml file at /Volumes/usb-key/settings-security.xml which would only be available if the developer were sitting at the workstation.
