Setting up a Secure, Private Sonatype Nexus Repository

What an exciting first post, I’m sure. But it’s what I’m working on, I suppose.

A few things, first:

  • We’re using an LDAP server to identify team members.
  • LDAP and Sonatype Nexus are on different domains (though, possibly, the same machine).
  • I’m not a system admin, so this is likely going to be painful.

The Plan
Okay, so – there should be three groups. Admins, Developers, CI.

Admins Should be able to modify every aspect of the repository.

Developers Should be able to pull artifacts from the private repository.

Continuous Integration Should be able to push artifacts to the private repository.

The Goal
I believe I’ve already said it, but I’m no system administrator. The only goal I particularly have in mind is to ensure that we have a private repository for proprietary software that our developers can grab artifacts from when necessary.

This sounds easy, but I still have nightmares from Sonatype Nexus 2 a few years ago.

Let’s put it in practice…
Alright, then.

So first things first, my System Administrator (<3 Luke) already set the system up itself, and connected it to LDAP. So I can ignore those two bits. I think, for once, he might have gotten the easy job.

Secondly, I’ve gone to Security -> Anonymous and disabled access for anonymous users entirely. This won’t ever be a public server, so there’s no use in any kind of complicated system.

The next thing I need to do is make sure to assign a role to LDAP users when they sign-in for the first time.

Role Mapping
Okay – I’m back.

secure nexus repo

The answer I was looking for was “Role Mapping”. All You have to do is go: Roles -> Create role -> External role mapping -> LDAP (Or, presumably, whatever you’ve named your LDAP on Sonatype Nexus. My System Administrator isn’t particularly original. A few names come to mind off the top of my head: AutoJoin Doomslingers? No?

That was easy enough.

secure nexus repo2

You’ll notice that I’ve left the granted privileges out of the screenshot. I’m not being particularly sneaky, or anything, I just have absolutely no idea how to work them at the moment and I have yet to create the private repository anyways, which we’ll cover next.

Anyways. Now that my users will be mapped to that group when they join, let’s actually create the Private Repository.

Creating the Private Repositories
I think this part should be easy enough – even for me.

secure nexus repo3


I… instantly said that too soon. I actually laughed when I typed that sentence, when to add a new repository, and this was the first screen to present itself to me.

So, obviously, we’re sticking with Maven2. We’re Java developers, and I have no interest in the other recipes. At least, at the moment.

I’m assuming (without looking this up) that hosted is the type we’ll want.

secure nexus repo4

Until I learn I should be doing differently, I’m going to go ahead and leave pretty much everything as default, minus the Version policy. I’ll go ahead and create a twin-sister repository just like this one for qixalite-private-releases.

Now I’ll create a group for them, so they can both be referenced. How we factor the request will determine which is returned, I think.

secure nexus repo5

Giving Privileges to Developers
Alright – so now that the repositories are created, it’s time to assign them some privileges, allowing them to read/write from the repositories.

If there’s one thing I’ve learned, though, it’s that there are a trillion-and-a-half permissions to scroll through. Luckily enough, I know enough from Sonatype Nexus 2 on how to properly filter to find what I’m looking for.

One nx-repository-view-* later and I’m golden.

secure nexus repo6

I didn’t give them much because, frankly, our CI will be doing most of the hard work.

Setting up the CI account(?)
You’ll notice I left a (?) up there. Mostly because I have absolutely no idea if I’ll be giving the CI an actual account or if I’ll have a general key for pushing to repositories. I’m… really not sure how I want to play this, yet.

Google, here I come.

secure nexus repo7


I think it’s safe to say that the easiest option is to setup our CI with a username/password to be configured on the server itself. I’m… not entirely certain how Remote User Tokens work and it sounds exhausting. Sorry.

So… create the role.

secure nexus repo8

Add the privileges…

secure nexus repo9

And, finally, create the group.

secure nexus repo10

That was easy enough.


We’re done.

With that bit, anyways…

Now we need to configure the project.

Configuring CI to Use the New User
Alright, let’s open GitLab and grab our Project. This part is simple enough, I suppose. Project -> Settings -> Variables

secure nexus repo11

Now onto sweet, sweet build.gradle.

Configuring the build.gradle file
Getting the username/password for building is easy enough.

secure nexus repo12

Now onto the deploy script. Also not that hard. I’m back in familiar territory!

secure nexus repo13

Feel free to ignore the big yellow warning block. The day I get gradle to allow anything past Closure is the day I’ve died and gone to heaven. At execution it should be fine.

Alright. Last bit, before we test a deploy.

Configuring repository as password protected (gradle)
We’re back at the build.gradle for this. I’m actually just going to paste this code block, because there’s no way to make the image pretty.

repositories {
    maven {
        url ""
        credentials {
            username nexusUsername
            password nexusPassword

That should be all she wrote, there. Let’s do some testing.

Whoops! Forgot to modify my .gitlab-ci.yml

secure nexus repo14

NOW Let’s do some testing! 😀

Test One (Fail)
Alright. Let’s push these changes to master.

I hope my fellow developers don’t kill me in my sleep for making master a commit ahead, but I’m sure they won’t mind the merge issues.

Aaaannnddd immediate failure.

secure nexus repo15

It looks like GitLab-CI doesn’t pull over SSH. Interesting.

Test Two (Failure)
And we’re back! Let’s try this again.

I had Luke, my system admin, go ahead and re-enable HTTP access to repos. You still need a username and password, but it’s not a big deal at least while we’re testing things (and fixing that problem isn’t within the scope of this blog post).


secure nexus repo16

I’ve never seen this error, before. Google, here I come again.

Turns out I didn’t need Google, after all!

secure nexus repo17

I forgot to add a URL for my repository.

Test 3 (Fail)

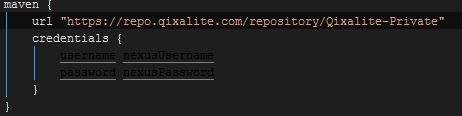

secure nexus repo18

All fixed, now!

secure nexus repo19

Not quite…

Thankfully, I know what’s wrong, this time.

Test 4 (Fail)
Just need to properly setup the .gitlab-ci.yml.

secure nexus repo21


Alright! We’re all go-DAMNIT

secure nexus repo22

Unauthorized, huh? Maybe I set something up wrong… Lemme take a look…


Test 5 (Fail)
I found it.

secure nexus repo23

I misnamed the variables from all that time ago. Whoops.

Let’s rebuild and try ag-ARG!

secure nexus repo25

Now I know for sure GitLab-CI should be getting my username and password correctly… This will take some time to look into…

Test 6 (Fail)
So I think I found it. Or, rather, Luke – my system administrator – found it.

    nexusUsername = System.getProperty(NEXUS_USERNAME)
    nexusPassword = System.getProperty(NEXUS_PASSWORD)

So we’ve changed these to these, which should work:

    nexusUsername = "$System.env.NEXUS_USERNAME"
    nexusPassword = "$System.env.NEXUS_PASSWORD"

secure nexus repo25

Or not.

Test 7 (Success!!)
BUT! It’s progress. Now we’re “Forbidden”, not “Unauthorized”. Which means I setup the roles for the gitlab-ci user wrong.

Let’s take a look.

secure nexus repo26


I think, before, I was too stingy on the perms. I’ve gone ahead and given the gitlac-ciuser every nx-repository-view permission. This should be acceptable.

secure nexus repo27

Oh, lord, that’s a sight for sore eyes…

Let’s check the repository, now.

secure nexus repo28

Well, I suppose that does it. Hope you, whoever you are, enjoyed the journey.

Sorry for the insane, failure-driven first post.

Thanks for the help, Luke.
